슬링와이어로프 제작영상

슬링와이어로프 제품코드

품질 보증 체계

  • 당사 제품은 KSD3514기준에 의거 제작됩니다.
  • 표준 제작 방식과 안전 기준을 준수하여 제작합니다.
  • Maker 제품을 사용하고 원소재의 Certificate(품질 보증)를 제공합니다

안전기준

  • KSD3514 기준으로 제작함으로 안전합니다.
  • 공장방문하시면 제작 과정을 보실 수 있습니다.

제품 구분

  • Sling 사람이 수작업으로 직접 5회 꼬임을 하여 만든 제품
  • Locking Sleeve를 압착시켜 만든 제품

Q-No Code 해석

(예) S (L) 16 - 10 H (S)
  • S Sling 제품
  • (L) Locking 제품
  • 16 Wire Rope 소재 직경(mm)
  • 10 제품길이(m)
  • H 고리길이가 표준보다 크게 제작된 제품
  • (S) 고리길이가 표준보다 작게 제작된 제품
일반 Sling제품 특수 Sling제품
순번 Wire
직경(mm)		 Name No Sling Rope 길이(m) 고리(H)
길이(cm)
1 6 SLing Q-No S6-1.5 6D x 1.5 30
2 6 SLing Q-No S6-2 6D x 2M 30
3 6 SLing Q-No S6-3 6D x 3M 30
4 6 SLing Q-No S6-6 6D x 6M 30
5 6 SLing Q-No S6-8 6D x 8M 30
6 6 Locking Q-No L6-1.5 6D x 1.5 30
7 6 Locking Q-No L6-2 6D x 2M 30
8 6 Locking Q-No L6-3 6D x 3M 30
9 6 Locking Q-No L6-6 6D x 6M 30
10 6 Locking Q-No L6-8 6D x 8M 30
11 8 SLing Q-No S8-9 8D x 10M 30
12 8 SLing Q-No S8-1 8D x 1M 30
13 8 SLing Q-No S8-2.5 8D x 2.5M 30
14 8 SLing Q-No S8-2 8D x 2M 30
15 8 SLing Q-No S8-4 8D x 3M 30
16 8 SLing Q-No S8-5 8D x 5M 30
17 8 SLing Q-No S8-6 8D x 6M 30
18 8 SLing Q-No S8-7 8D x 7M 30
19 8 SLing Q-No S8-8 8D x 8M 30
20 8 Locking Q-No L8-9 8D x 10M 30
21 8 Locking Q-No L8-1 8D x 1M 30
22 8 Locking Q-No L8-2.5 8D x 2.5M 30
23 8 Locking Q-No L8-2 8D x 2M 30
24 8 Locking Q-No L8-4 8D x 3M 30
25 8 Locking Q-No L8-5 8D x 5M 30
26 8 Locking Q-No L8-6 8D x 6M 30
27 8 Locking Q-No L8-7 8D x 7M 30
28 8 Locking Q-No L8-8 8D x 8M 30
29 10 SLing Q-No S10-1.2 10D x 1.2M 30
30 10 SLing Q-No S10-1.5 10D x 1.5M 30
31 10 SLing Q-No S10-10 10D x 10M 30
32 10 SLing Q-No S10-1 10D x 1M 30
33 10 SLing Q-No S10-2.5 10D x 2.5M 30
34 10 SLing Q-No S10-2 10D x 2M 30
35 10 SLing Q-No S10-3 10D x 3M 30
36 10 SLing Q-No S10-4 10D x 4M 30
37 10 SLing Q-No S10-5 10D x 5M 30
38 10 SLing Q-No S10-6 10D x 6M 30
39 10 SLing Q-No S10-7 10D x 7M 30
40 10 SLing Q-No S10-8 10D x 8M 30
41 10 Locking Q-No L10-1.2 10D x 1.2M 30
42 10 Locking Q-No L10-1.5 10D x 1.5M 30
43 10 Locking Q-No L10-10 10D x 10M 30
44 10 Locking Q-No L10-1 10D x 1M 30
45 10 Locking Q-No L10-2.5 10D x 2.5M 30
46 10 Locking Q-No L10-2 10D x 2M 30
47 10 Locking Q-No L10-3 10D x 3M 30
48 10 Locking Q-No L10-4 10D x 4M 30
49 10 Locking Q-No L10-5 10D x 5M 30
50 10 Locking Q-No L10-6 10D x 6M 30
51 10 Locking Q-No L10-7 10D x 7M 30
52 10 Locking Q-No L10-8 10D x 8M 30
53 12 SLing Q-No S12-1.5 12D x 1.5M 35
54 12 SLing Q-No S12-10 12D x 10M 35
55 12 SLing Q-No S12-12 12D x 12M 35
56 12 SLing Q-No S12-1 12D x 1M 35
57 12 SLing Q-No S12-2 12D x 2M 35
58 12 SLing Q-No S12-3 12D x 3M 35
59 12 SLing Q-No S12-4.5 12D x 4.5M 35
60 12 SLing Q-No S12-4 12D x 4M 35
61 12 SLing Q-No S12-5 12D x 5M 35
62 12 SLing Q-No S12-6 12D x 6M 35
63 12 SLing Q-No S12-7 12D x 7M 35
64 12 SLing Q-No S12-8 12D x 8M 35
65 12 Locking Q-No L12-1.5 12D x 1.5M 35
66 12 Locking Q-No L12-10 12D x 10M 35
67 12 Locking Q-No L12-12 12D x 12M 35
68 12 Locking Q-No L12-1 12D x 1M 35
69 12 Locking Q-No L12-2 12D x 2M 35
70 12 Locking Q-No L12-3 12D x 3M 35
71 12 Locking Q-No L12-4.5 12D x 4.5M 35
72 12 Locking Q-No L12-4 12D x 4M 35
73 12 Locking Q-No L12-5 12D x 5M 35
74 12 Locking Q-No L12-6 12D x 6M 35
75 12 Locking Q-No L12-7 12D x 7M 35
76 12 Locking Q-No L12-8 12D x 8M 35
77 14 SLing Q-No S14-0.8 14D x 0.8M 35
78 14 SLing Q-No S14-1.2 14D x 1.2M 35
79 14 SLing Q-No S14-1.5 14D x 1.5M 35
80 14 SLing Q-No S14-1 14D x 1M 35
81 14 SLing Q-No S14-2 14D x 2M 35
82 14 SLing Q-No S14-3 14D x 3M 35
83 14 SLing Q-No S14-4.5 14D x 4.5M 35
84 14 SLing Q-No S14-4 14D x 4M 35
85 14 SLing Q-No S14-5 14D x 5M 35
86 14 SLing Q-No S14-6 14D x 6M 35
87 14 SLing Q-No S14-8 14D x 8M 35
88 14 Locking Q-No L14-0.8 14D x 0.8M 35
89 14 Locking Q-No L14-1.2 14D x 1.2M 35
90 14 Locking Q-No L14-1.5 14D x 1.5M 35
91 14 Locking Q-No L14-1 14D x 1M 35
92 14 Locking Q-No L14-2 14D x 2M 35
93 14 Locking Q-No L14-3 14D x 3M 35
94 14 Locking Q-No L14-4.5 14D x 4.5M 35
95 14 Locking Q-No L14-4 14D x 4M 35
96 14 Locking Q-No L14-5 14D x 5M 35
97 14 Locking Q-No L14-6 14D x 6M 35
98 14 Locking Q-No L14-8 14D x 8M 35
99 16 SLing Q-No S16-1.5 16D x 1.5M 40
100 16 SLing Q-No S16-10 16D x 10M 40
101 16 SLing Q-No S16-10H 16D x 10M 70
102 16 SLing Q-No S16-1 16D x 1M 40
103 16 SLing Q-No S16-2.5 16D x 2.5M 40
104 16 SLing Q-No S16-2 16D x 2M 40
105 16 SLing Q-No S16-3 16D x 3M 40
106 16 SLing Q-No S16-4 16D x 4M 40
107 16 SLing Q-No S16-5 16D x 5M 40
108 16 SLing Q-No S16-6.5 16D x 6.5M 40
109 16 SLing Q-No S16-6 16D x 6M 40
110 16 SLing Q-No S16-7 16D x 7M 40
111 16 SLing Q-No S16-8 16D x 8M 40
112 16 Locking Q-No L16-1.5 16D x 1.5M 40
113 16 Locking Q-No L16-10 16D x 10M 40
114 16 Locking Q-No L16-10H 16D x 10M 70
115 16 Locking Q-No L16-1 16D x 1M 40
116 16 Locking Q-No L16-2.5 16D x 2.5M 40
117 16 Locking Q-No L16-2 16D x 2M 40
118 16 Locking Q-No L16-3 16D x 3M 40
119 16 Locking Q-No L16-4 16D x 4M 40
120 16 Locking Q-No L16-5 16D x 5M 40
121 16 Locking Q-No L16-6.5 16D x 6.5M 40
122 16 Locking Q-No L16-6 16D x 6M 40
123 16 Locking Q-No L16-7 16D x 7M 40
124 16 Locking Q-No L16-8 16D x 8M 40
125 18 SLing Q-No S18-1.2 18D x 1.2M 40
126 18 SLing Q-No S18-10 18D x 10M 40
127 18 SLing Q-No S18-1 18D x 1M 40
128 18 SLing Q-No S18-2.5 18D x 2.5M 40
129 18 SLing Q-No S18-2 18D x 2M 40
130 18 SLing Q-No S18-4 18D x 4M 40
131 18 SLing Q-No S18-5 18D x 5M 40
132 18 SLing Q-No S18-6 18D x 6M 40
133 18 SLing Q-No S18-7 18D x 7M 40
134 18 SLing Q-No S18-8 18D x 8M 40
135 18 Locking Q-No L18-1.2 18D x 1.2M 40
136 18 Locking Q-No L18-10 18D x 10M 40
137 18 Locking Q-No L18-1 18D x 1M 40
138 18 Locking Q-No L18-2.5 18D x 2.5M 40
139 18 Locking Q-No L18-2 18D x 2M 40
140 18 Locking Q-No L18-4 18D x 4M 40
141 18 Locking Q-No L18-5 18D x 5M 40
142 18 Locking Q-No L18-6 18D x 6M 40
143 18 Locking Q-No L18-7 18D x 7M 40
144 18 Locking Q-No L18-8 18D x 8M 40
145 20 SLing Q-No S20-1.2 20D x 1.2M 40
146 20 SLing Q-No S20-1.5 20D x 1.5M 40
147 20 SLing Q-No S20-10 20D x 10M 40
148 20 SLing Q-No S20-11 20D x 11M 40
149 20 SLing Q-No S20-12 20D x 12M 40
150 20 SLing Q-No S20-2 20D x 2M 40
151 20 SLing Q-No S20-2H 20D x 2M 70
152 20 SLing Q-No S20-3.5 20D x 3.5M 40
153 20 SLing Q-No S20-3 20D x 3M 40
154 20 SLing Q-No S20-4.5 20D x 4.5M 40
155 20 SLing Q-No S204 20D x 4M 40
156 20 SLing Q-No S20-4H 20D x 4M 70
157 20 SLing Q-No S20-5 20D x 5M 40
158 20 SLing Q-No S20-6 20D x 6M 40
159 20 SLing Q-No S20-7 20D x 7M 40
160 20 SLing Q-No S20-8 20D x 8M 40
161 20 SLing Q-No S20-8H 20D x 8M 70
162 20 SLing Q-No S20-9 20D x 9M 40
163 20 SLing Q-No S20-3.3 CIRCLE 20D x 3.3M 100
164 20 SLing Q-No S20-3.7 CIRCLE 20D x 3.7M 110
165 20 Locking Q-No L20-1.2 20D x 1.2M 40
166 20 Locking Q-No L20-1.5 20D x 1.5M 40
167 20 Locking Q-No L20-10 20D x 10M 40
168 20 Locking Q-No L20-11 20D x 11M 40
169 20 Locking Q-No L20-12 20D x 12M 40
170 20 Locking Q-No L20-2 20D x 2M 40
171 20 Locking Q-No L20-2H 20D x 2M 70
172 20 Locking Q-No L20-3.5 20D x 3.5M 40
173 20 Locking Q-No L20-3 20D x 3M 40
174 20 Locking Q-No L20-4.5 20D x 4.5M 40
175 20 Locking Q-No L20-4 20D x 4M 40
176 20 Locking Q-No L20-4H 20D x 4M 70
177 20 Locking Q-No L20-5 20D x 5M 40
178 20 Locking Q-No L20-6 20D x 6M 40
179 20 Locking Q-No L20-7 20D x 7M 40
180 20 Locking Q-No L20-8 20D x 8M 40
181 20 Locking Q-No L20-8H 20D x 8M 70
182 20 Locking Q-No L20-9 20D x 9M 40
183 20 Locking Q-No L20-3.3 CIRCLE 20D x 3.3M 100
184 20 Locking Q-No L20-3.7 CIRCLE 20D x 3.7M 110
185 22 SLing Q-No S22-2.6 22D x 2.6M 40
186 22 SLing Q-No S22-2 22D x 2M 40
187 22 SLing Q-No S22-4.5 22D x 4.5M 40
188 22 SLing Q-No S22-6 22D x 6M 40
189 22 SLing Q-No S22-8 22D x 8M 40
190 22 Locking Q-No L22-2.6 22D x 2.6M 40
191 22 Locking Q-No L22-2 22D x 2M 40
192 22 Locking Q-No L22-4.5 22D x 4.5M 40
193 22 Locking Q-No L22-6 22D x 6M 40
194 22 Locking Q-No L22-8 22D x 8M 40
195 24 SLing Q-No S24-10 24D x 10M 45
196 24 SLing Q-No S24-13 24D x 13M 45
197 24 SLing Q-No S24-2 24D x 2M 45
198 24 SLing Q-No S24-3.8 24D x 3.8M 45
199 24 SLing Q-No S24-3 24D x 3M 45
200 24 SLing Q-No S24-4.8 24D x 4.8M 45
201 24 SLing Q-No S24-4 24D x 4M 45
202 24 SLing Q-No S24-6 24D x 6M 45
203 24 SLing Q-No S24-8 24D x 8M 45
204 24 Locking Q-No L2410 24D x 10M 45
205 24 Locking Q-No L24-13 24D x 13M 45
206 24 Locking Q-No L24-2 24D x 2M 45
207 24 Locking Q-No L24-3.8 24D x 3.8M 45
208 24 Locking Q-No L24-3 24D x 3M 45
209 24 Locking Q-No L24-4.8 24D x 4.8M 45
210 24 Locking Q-No L24-4 24D x 4M 45
211 24 Locking Q-No L24-6 24D x 6M 45
212 24 Locking Q-No L24-8 24D x 8M 45
213 26 SLing Q-No S26-10 26D x 10M 45
214 26 SLing Q-No S26-2 26D x 2M 45
215 26 SLing Q-No S26-4 26D x 4M 45
216 26 SLing Q-No S26-5 26D x 5M 45
217 26 SLing Q-No S26-6 26D x 6M 45
218 26 SLing Q-No S26-7 26D x 7M 45
219 26 SLing Q-No S26-8 26D x 8M 45
220 26 Locking Q-No L26-10 26D x 10M 45
221 26 Locking Q-No L26-2 26D x 2M 45
222 26 Locking Q-No L26-4 26D x 4M 45
223 26 Locking Q-No L26-5 26D x 5M 45
224 26 Locking Q-No L26-6 26D x 6M 45
225 26 Locking Q-No L26-7 26D x 7M 45
226 26 Locking Q-No L26-8 26D x 8M 45
227 28 SLing Q-No S28-12 28D x 12M 45
228 28 SLing Q-No S28-3 28D x 3M 45
229 28 SLing Q-No S28-4 28D x 4M 45
230 28 SLing Q-No S28-5 28D x 5M 45
231 28 SLing Q-No S28-6 28D x 6M 45
232 28 Locking Q-No L28-12 28D x 12M 45
233 28 Locking Q-No L28-3 28D x 3M 45
234 28 Locking Q-No L28-4 28D x 4M 45
235 28 Locking Q-No L28-5 28D x 5M 45
236 28 Locking Q-No L28-6 28D x 6M 45
237 30 SLing Q-No S30-10 30D x 10M 50
238 30 SLing Q-No S30-30 30D x 30M 50
239 30 SLing Q-No S30-3 30D x 3M 50
240 30 SLing Q-No S30-4 30D x 4M 50
241 30 SLing Q-No S30-5 30D x 5M 50
242 30 SLing Q-No S30-6 30D x 6M 50
243 30 SLing Q-No S30-8 30D x 8M 50
244 30 Locking Q-No L30-10 30D x 10M 50
245 30 Locking Q-No L30-30 30D x 30M 50
246 30 Locking Q-No L30-3 30D x 3M 50
247 30 Locking Q-No L30-4 30D x 4M 50
248 30 Locking Q-No L30-5 30D x 5M 50
249 30 Locking Q-No L30-6 30D x 6M 50
250 30 Locking Q-No L30-8 30D x 8M 50
251 32 SLing Q-No S32-2.5 32D x 2.5 50
252 32 SLing Q-No S32-10 32D x 10M 50
253 32 SLing Q-No S32-12 32D x 12M 50
254 32 SLing Q-No S32-2.7 32D x 2.7M 50
255 32 SLing Q-No S32-3.5 32D x 3.5M 50
256 32 SLing Q-No S32-4 32D x 4M 50
257 32 SLing Q-No S32-5.5 32D x 5.5M 50
258 32 SLing Q-No S32-5 32D x 5M 50
259 32 SLing Q-No S32-6 32D x 6M 50
260 32 SLing Q-No S32-8 32D x 8M 50
261 32 Locking Q-No L32-2.5 32D x 2.5 50
262 32 Locking Q-No L32-10 32D x 10M 50
263 32 Locking Q-No L32-12 32D x 12M 50
264 32 Locking Q-No L32-2.7 32D x 2.7M 50
265 32 Locking Q-No L32-3.5 32D x 3.5M 50
266 32 Locking Q-No L32-4 32D x 4M 50
267 32 Locking Q-No L32-5.5 32D x 5.5M 50
268 32 Locking Q-No L32-5 32D x 5M 50
269 32 Locking Q-No L32-6 32D x 6M 50
270 32 Locking Q-No L32-8 32D x 8M 50
271 36 SLing Q-No S36-10 36D x 10M 60
272 36 SLing Q-No S36-3 36D x 3M 60
273 36 SLing Q-No S36-4S 36D x 4M 30
274 36 SLing Q-No S36-5 36D x 5M 60
275 36 SLing Q-No S36-7 36D x 7M 60
276 36 SLing Q-No S36-8 36D x 8M 60
277 36 Locking Q-No L36-10 36D x 10M 60
278 36 Locking Q-No L36-3 36D x 3M 60
279 36 Locking Q-No L36-4S 36D x 4M 30
280 36 Locking Q-No L36-5 36D x 5M 60
281 36 Locking Q-No L36-7 36D x 7M 60
282 36 Locking Q-No L36-8 36D x 8M 60
283 40 SLing Q-No S40-10 40D x 10M 70
284 40 SLing Q-No S40-12 40D x 12M 70
285 40 SLing Q-No S40-3 40D x 3M 70
286 40 SLing Q-No S40-4 40D x 4M 70
287 40 SLing Q-No S40-5 40D x 5M 70
288 40 SLing Q-No S40-6 40D x 6M 70
289 40 SLing Q-No S40-8 40D x 8M 70
290 40 Locking Q-No L40-10 40D x 10M 70
291 40 Locking Q-No L40-12 40D x 12M 70
292 40 Locking Q-No L40-3 40D x 3M 70
293 40 Locking Q-No L40-4 40D x 4M 70
294 40 Locking Q-No L40-5 40D x 5M 70
295 40 Locking Q-No L40-6 40D x 6M 70
296 40 Locking Q-No L40-8 40D x 8M 70
297 45 SLing Q-No S45-12 45D x 12M 70
298 45 SLing Q-No S45-4 45D x 4M 70
299 45 SLing Q-No S45-8 45D x 8M 70
300 45 Locking Q-No L45-12 45D x 12M 70
301 45 Locking Q-No L45-4 45D x 4M 70
302 45 Locking Q-No L45-8 45D x 8M 70
303 50 SLing Q-No S50-4 50D x 4M 80
304 50 SLing Q-No S50-8 50D x 8M 80
305 50 Locking Q-No L50-4 50D x 4M 80
306 50 Locking Q-No L50-8 50D x 8M 80
307 60 SLing Q-No S60-8 60D x 8M 80
308 60 Locking Q-No L60-8 60D x 8M 80
순번 Wire
직경(mm)		 Name No Sling Rope 길이(m) 고리(H)
길이(cm)
1 20 STEEL Q-No S20-5 CIRCLE 20D x 3.3M, 6X24,Z,HC,KSD3514 1m 100
2 20 STEEL Q-No S20-6 CIRCLE 20D x 3.7M, 6X24,Z,HC,KSD3514,DIAMETER:1.1M 110
3 22 STEEL Q-No S22-4.5 22D x 4.5M 40
4 22 Locking Q-No L22-4.5 22D x 4.5M 40
5 24 STEEL Q-No S24-3.8 24D x 3.8M 45
6 24 Locking Q-No L24-3.8 24D x 3.8M 45
7 26 STEEL Q-No S26-2 26D x 4M, 6X24,Z,HC,KSD3514,EYE500, CLAMPING&THIMBLE,*SAFETY ITEM 45
8 26 Locking Q-No L26-2 26D x 4M, 6X24,Z,HC,KSD3514,EYE500, CLAMPING&THIMBLE,*SAFETY ITEM 45

기계부품가공 제작영상

조직도

본문 바로가기

  • 홈
  • 회사소개
  • 조직도

조직도

조직도

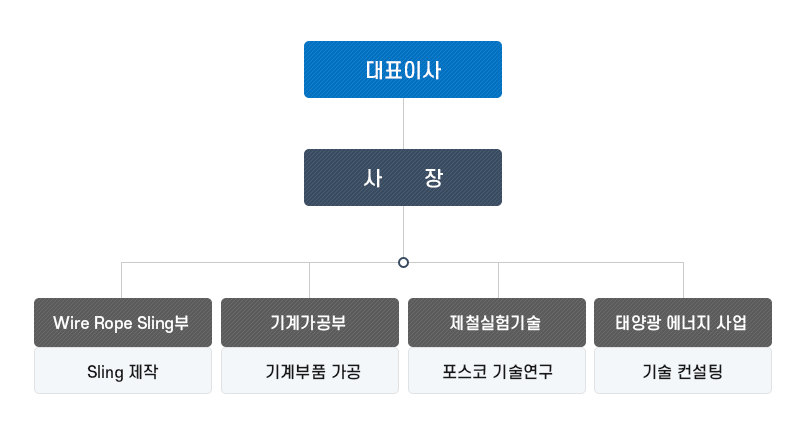

스틸이엔지조직도


그누보드5

전라남도 광양시 백운1로 605 TEL 061-772-9229 FAX 061-772-9228

Copyright © 소유하신 도메인. All rights reserved.
